KPS Global Accessible Cold Environments™

INTRODUCING A NEW KIND OF COLD STORAGE

A CCESSIBLE
C OLD
E NVIRONMENTS™

The KPS Global Accessible Cold Environments™ unit, also known as ACE™, is an innovative solution to loading and accessing perishable goods.

RAC Award Finalist

This groundbreaking technology is the first open front refrigerated solution to hold product temperature below 40°F all the way to the floor without using glass or solid doors to keep heat out of the space.

Whether you need general information or have specific questions, we want to hear from you.

WHAT MAKES ACE UNIQUE?

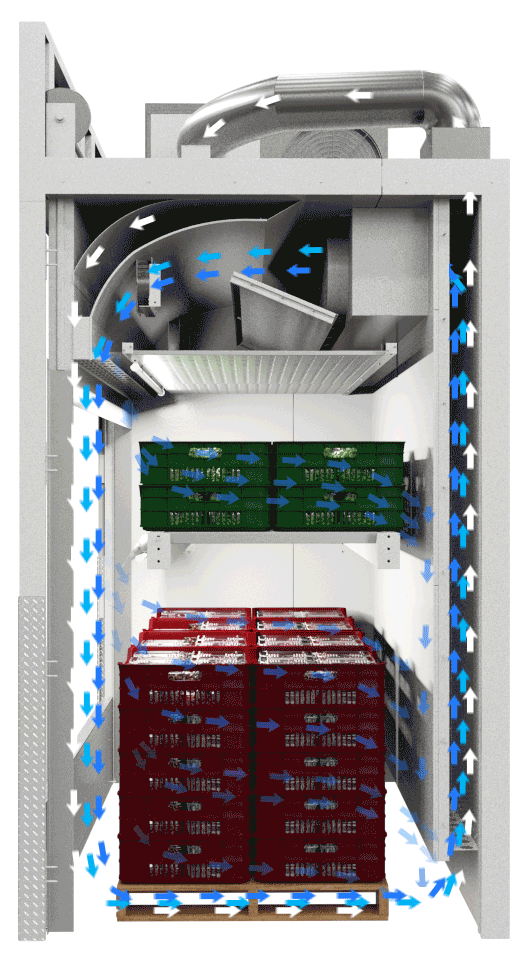

Triple Air Curtain

The ACE™ unit refrigerates products with a patent-pending triple air curtain.
Learn More
The ACE™ unit maintains two separate temperature zones between the unit's large interior shelf and pallet area.
Learn More

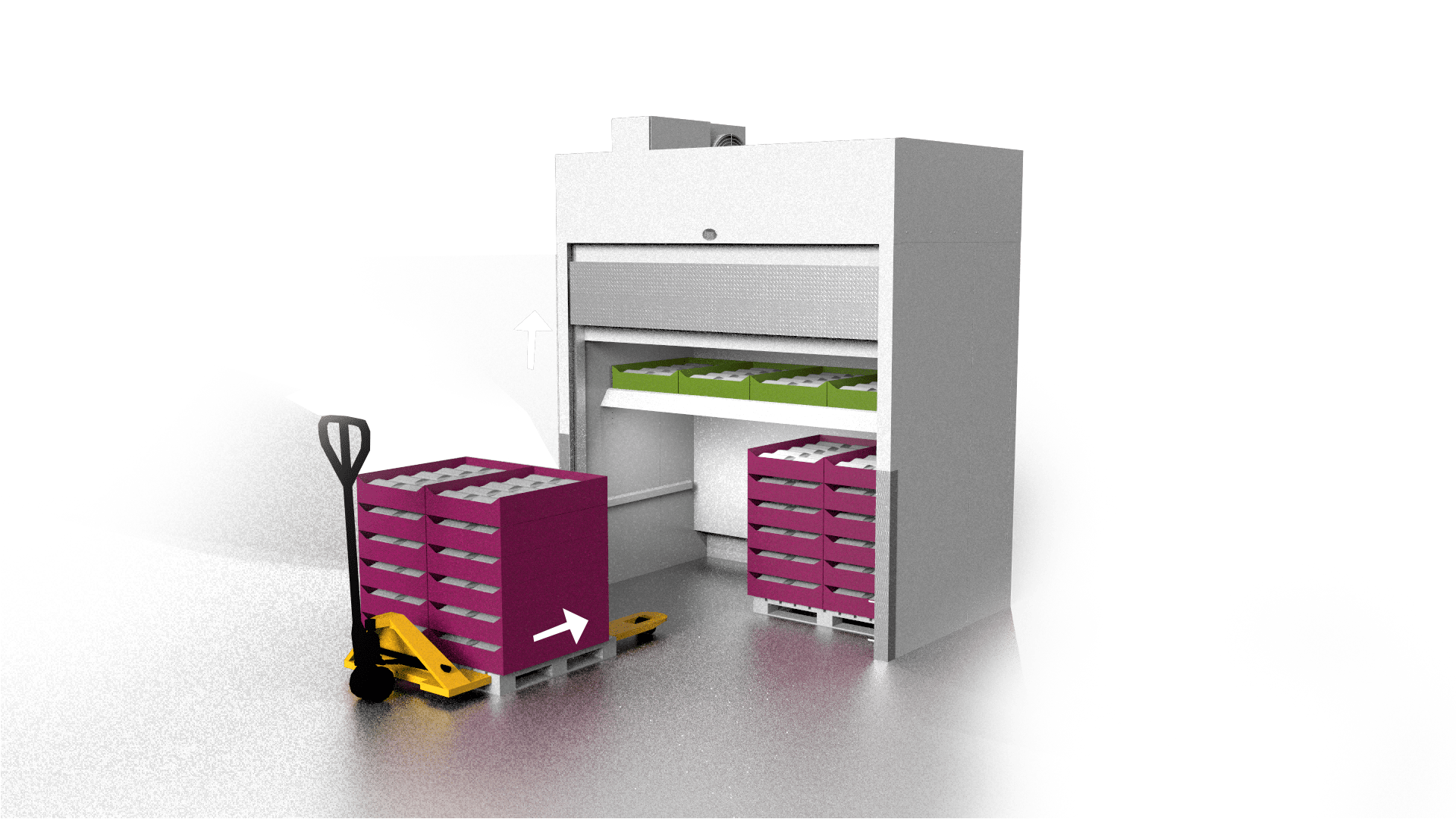

Vertical Lift System

The ACE™ unit’s unique vertical lift system allows full pallets to be easily moved into the chilled environment, significantly decreasing load times.
Learn More

The ACE unit is a great option for improving labor efficiencies and reducing pick times for eCommerce or Online Grocery Pick-up (OGP) programs where additional storage of bulk refrigerated products is needed.

There are many applications for this new cold storage technology from ecommerce grocery fulfillment to pharmaceutical to 3PL.

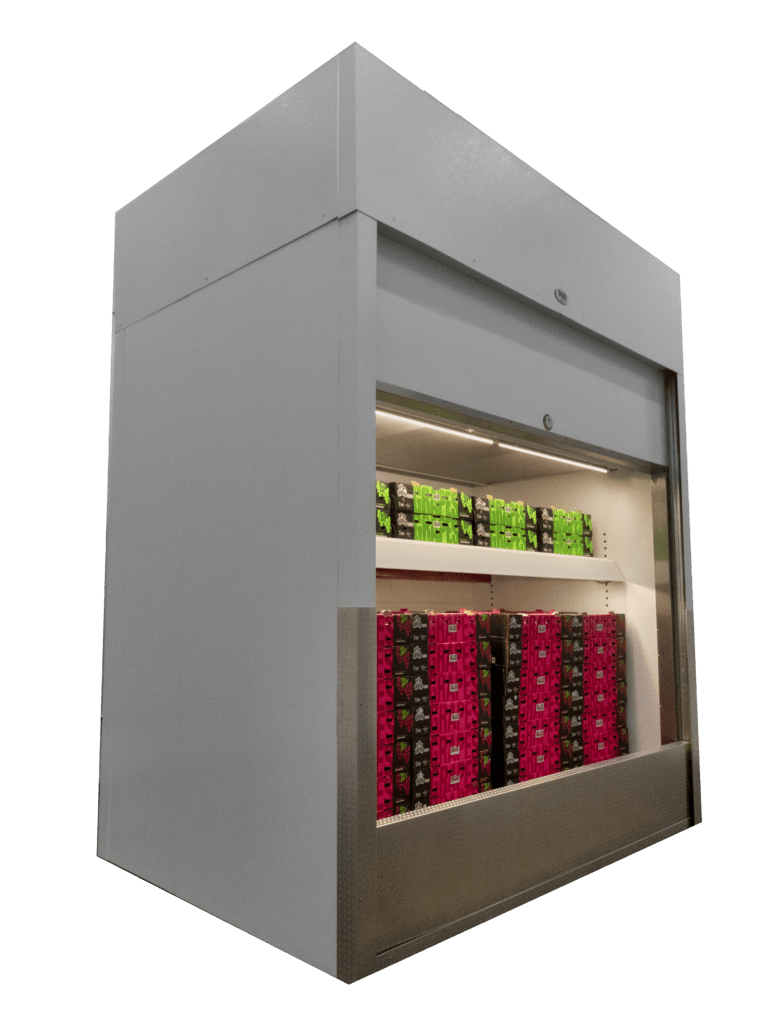

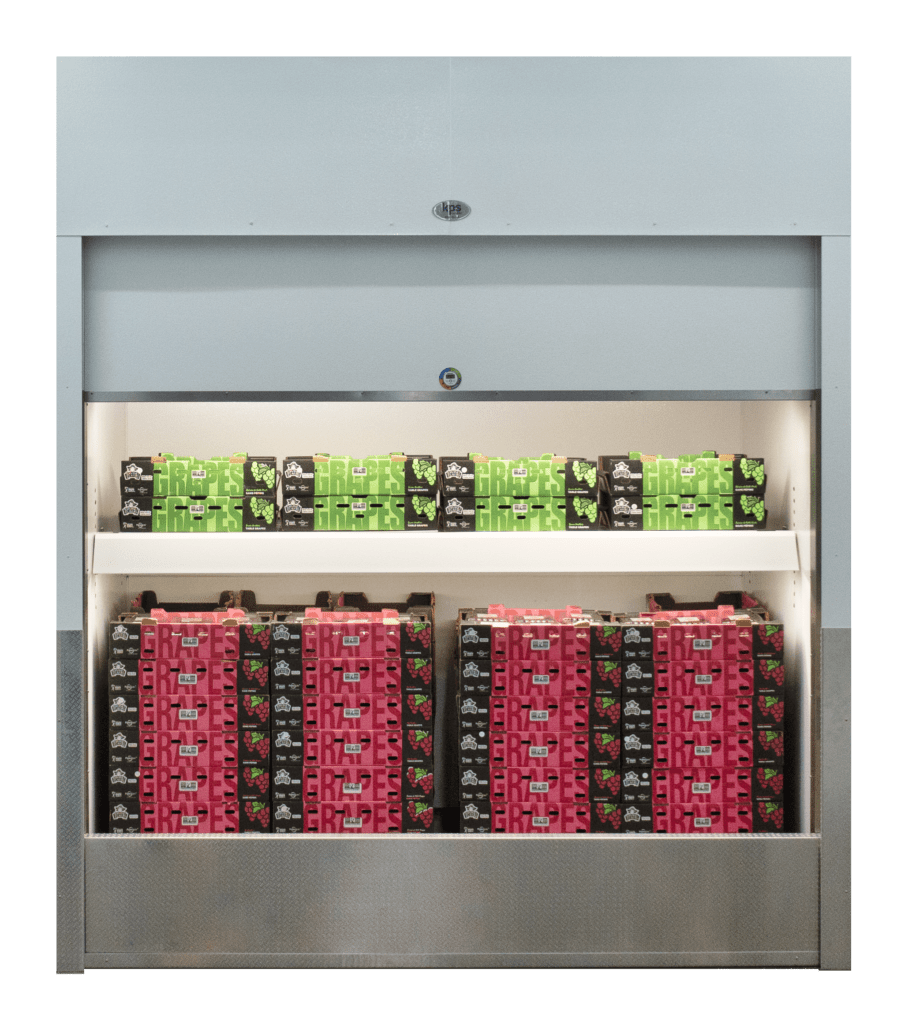

GALLERY

The ACE unit improves labor efficiencies for loading and restocking perishable product with its unique vertical lift system that allows full pallets to be easily moved into the chilled environment, significantly decreasing load times.

ACE also provides the benefit of faster pick times for high-volume items. The employee no longer needs to go to a walk-in to pull refrigerated items for an order. And with no doors, there are no common surfaces to touch or barriers to pulling product, making the entire process safer and more efficient.

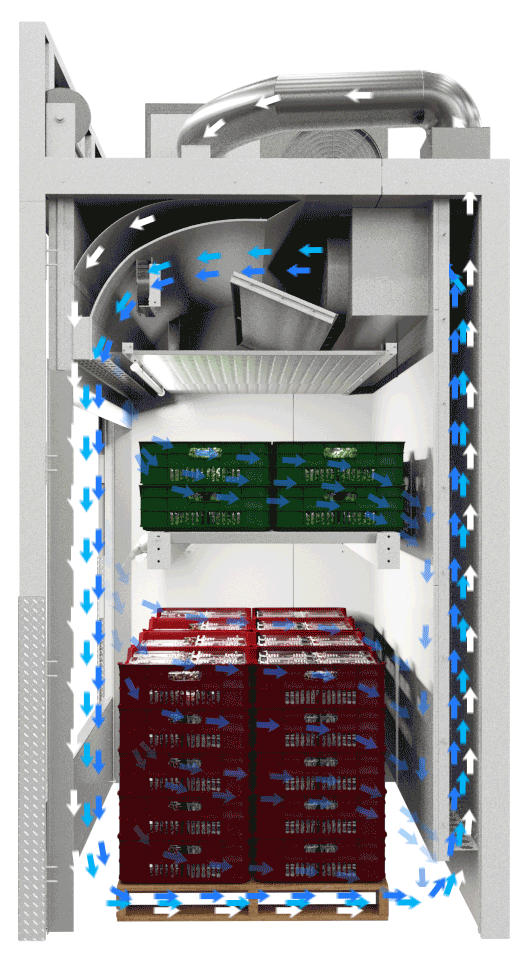

TRIPLE AIR CURTAIN

The ACE unit refrigerates products with a patent-pending triple air curtain that maintains two separate temperature zones between the unit’s large interior shelf and pallet area.

1st Air Curtain

Traps outside air trying to enter the ACE unit into its air stream, pushing it down to the floor beneath the product zone.

The majority of the air is then reconditioned and recirculated back to the air curtain system.

2nd Air Curtain

Is refrigerated and bathes the front of the product on both the shelf and pallet areas.

3rd Air Curtain

Is also refrigerated and bathes the top and rear of the product on both the shelf and pallet areas.

Front View

CONDENSER

SINGLE-POINT ELECTRICAL CONNECTION
BLOWER

SHROUD

TRIPLE AIR CURTAIN

THERMOMETER

AIR SHIELD

DTA PANEL (with spring-assisted vertical lift system)

DTA CORNER GUARD

Side View

CONDENSER

EVAPORATOR

PERFORATED METAL CEILING

CONDENSATE PUMP BEHIND PLENUM WALL

LED LIGHT FOR SHELF

TRIPLE AIR CURTAIN

SHELF

AIR SHIELD

LED LIGHT FOR PALLET

ADJUSTABLE SHELF BRACKET

PLENUM WALL

DEBRIS SCREEN

PALLET STOP
